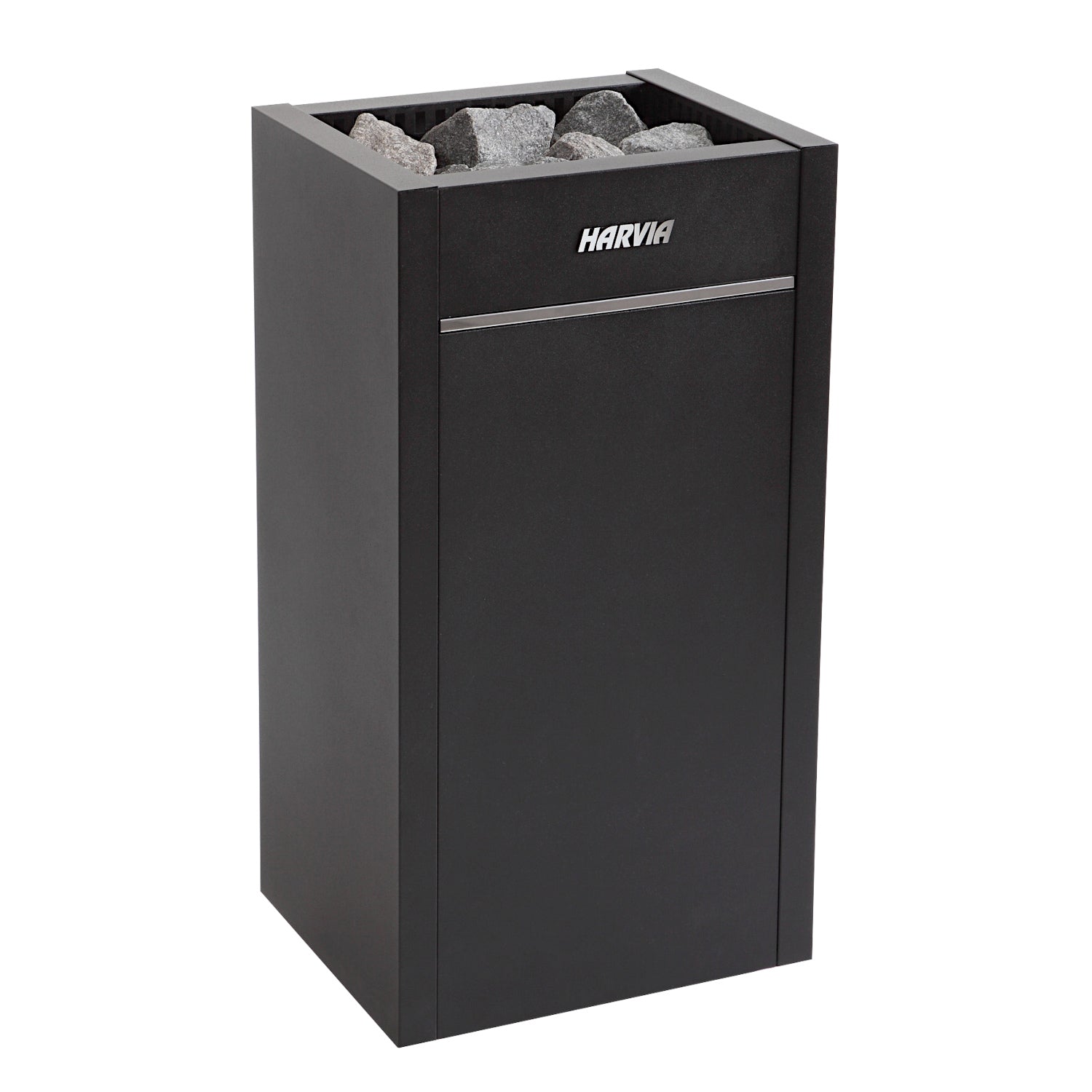

Manufacturer:Harvia
Width: 16" (415 mm)
Depth: 17" (340 mm), 11kW: 16" (410 mm)
Height: 33" (840 mm)
Weight: 51 lbs (23 kg), 11kw: 55 lbs (25 kg)
Guardrail for:
* 6-9 kW - HL3S
* 11 kW - HL3M
* 6-9 kW steamer - HL3M
* 11 kW steamer - HL3L
Embedding flange: HL1M
Room size:
177 ft³ - 294 ft³ (5-8 m³) : 6 kW
177 ft³ - 431 ft³ (5-12 m³): 8 kW
177 ft³ - 494 ft³ (5-14 m³): 9 kW
177 ft³ - 635 ft³ (5-18 m³): 11 kW
Stone capacity: 6-9 kW -110 lbs (50 kg), 11 kW - 154 lbs (70 kg)
Safety distance to combustible materials (wood): 2"
Remove the stones from the heater once per year, for inspection, replace any broken stones or stones with calcium or other deposit, and re-insert the stones carefully.
